line decor
   :: W&M Home :: Applied Science :: Optics and Laser
line decor


Defects in Semiconductors

Important Results:

  1. Bond Center Hydrogen
  2. H/D Isotope Effect
  3. Structure Dependent Lifetimes
  4. Hydrogen Bending Modes
  5. Interstitial Oxygen in Si and Ge


>> Sturcture Dependent Lifetimes

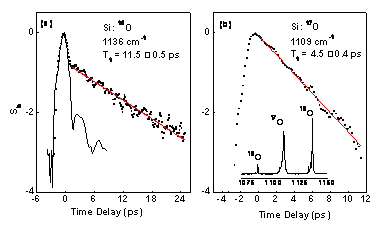

The lifetimes of the asymmetric stretch mode of interstitial 16O and 17O isotopes in Si are measured at 10 K directly by time-resolved, transient bleaching spectroscopy to be 11.5 and 4.5 ps, respectively.


Text Box:

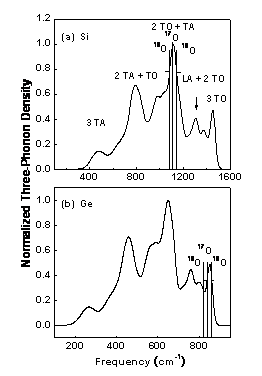

A calculation of the three-phonon density of states shows that the 17O mode lies in the highest phonon density resulting in the shortest lifetime. The interaction between the local modes and the lattice vibrations is discussed according to the activity of phonon combinations.

The lifetime of the asymmetric stretch mode is measured to be T1 = 125 ± 10 ps at 10 K, i.e., ~10 times longer than in Si.. Since the absorption lines of the 16Oi mode for different Ge isotopes are very close, our laser pulses can measure only an average lifetime. This corresponds to an average linewidth of 0.04 cm-1 in good agreement with infrared absorption measurements.


  1. B. Sun, Q. Yang, R. C. Newman, B. Pajot, N. H. Tolk, L. C. Feldman, G. Lüpke, Vibrational Lifetimes and Isotope Effects of Interstitial Oxygen in Silicon and Germanium, Phys. Rev. Lett. 92, 2004, pp. 185503-06.

<< Back :: Hydrogen Bending Modes ::

<< Back :: Introduction ::

Funding: NSF, DoE, Jeffress Foundation




line decor
    :: Welcome to the Optics and Laser group home page :: We suggest browser versions:: Firefox 1.5 :: Safari 2.0 :: Last updated :: Dec. 18th. 2015
line decor
