line decor
   :: W&M Home :: Applied Science :: Optics and Laser
line decor


Defects in Semiconductors

Important Results:

  1. Bond Center Hydrogen
  2. H/D Isotope Effect
  3. Structure Dependent Lifetimes
  4. Hydrogen Bending Modes
  5. Interstitial Oxygen in Si and Ge


>> Sturcture Dependent Lifetimes

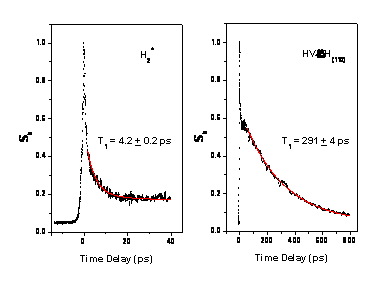

The lifetimes of the Si-H vibrational stretch modes of the H2* (2062 cm-1) and HV·VH(110) (2072.5 cm-1) defects in crystalline Si are measured directly by transient bleaching spectroscopy from 10 K to room temperature.

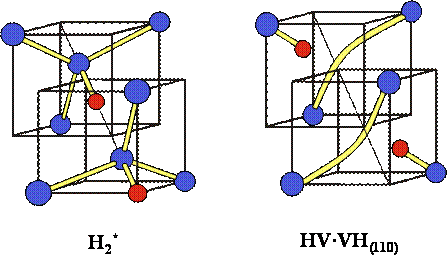

The interstitial-type defect H2* has a lifetime of 4.2 ps at 10 K, whereas the lifetime of the vacancy-type complex HV·VH(110) is 2 orders of magnitude longer, 291 ps. This behavior is attributed to the distinctly different local structure of these defects and the accompanying local vibrational modes. In the HV·VH(110) complex, the relatively large open volume of the vacancies leads to a small interaction between the hydrogen and the silicon atoms, resulting in a longer vibrational lifetime.


Text Box:


  1. G. Lüpke, X. Zhang, B. Sun, A. Fraser, N. H. Tolk, L. C. Feldman, Structure-Dependent Vibrational Lifetimes of Hydrogen in Silicon, Phys. Rev. Lett. 88, 2002, pp. 135501-4.

>> Back :: H/D Isotope Effect ::

>> Next :: Hydrogen Bending Modes ::

Funding: NSF, DoE, Jeffress Foundation




line decor
    :: Welcome to the Optics and Laser group home page :: We suggest browser versions:: Firefox 1.5 :: Safari 2.0 :: Last updated :: Dec. 18th. 2015
line decor
